Category
Item No:
46-96148A8
Similar fits No:
Mercury-Mecruiser: 46-96148A8, 46-60367A1, 46-96148A5, 46-96148T8, 46-96148Q8, 46-42579A3, 46-44292A8
Sierra: 18-3517, 18-3319, 18-3317, 18-3316
GLM: 12280, 12160, 12150, 12140, 12130, 12120, 12110

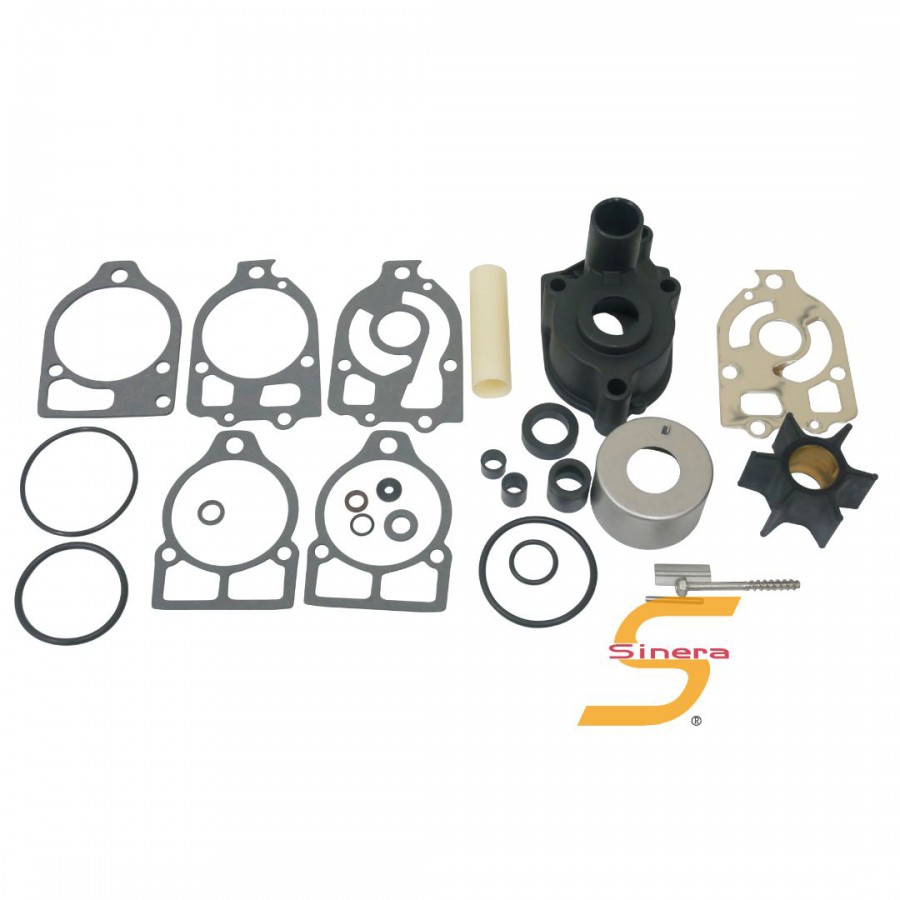

Includes:
46-44292A3 BASE ASSEMBLY, Water Pump
27-426311 GASKET, WATER PUMP TO GEAR HSG
25-896523 O-RING, (2.175 x .175), WATER PUMP
26-16977 SEAL, Oil, WATER PUMP
26-89283 SEAL, Oil, WATER PUMP
27-18051 GASKET, LOWER - WATER PUMP
27-858524 GASKET, UPPER - WATER PUMP
324351 FACE PLATE
46-96148T1 BODY ASSEMBLY, Water Pump
48752T INSERT, WATER PUMP
26-38970 SEAL, RUBBER - WATER INLET TUBE
47-89984T4 IMPELLER, WATER PUMP
28-56654 KEY, IMPELLER DRIVE
10-96411 SCREW, (#14-8 x 2.25), WATER PUMP TO GEAR HOUSING
11-8267119 NUT, (.250-28), WATER PUMP STUD
12-29245 WASHER, (.281 x .500 x .060) WATER PUMP STUD
11-13436 NUT, WATER PUMP STUDS (5/16-24)
12-36001 WASHER, WATER PUMP STUD
25-30271 RING, Rubber, DRIVE SHAFT
25-30613 O-RING, UPPER - DRIVE SHAFT
Fits:
Mercury/Mariner 65 hp (4 cylinder) through V‑6 outboards with short‑vane impellers
MerCruiser I/R/MR/Alpha drives serial numbers 2495186‑0D469858
